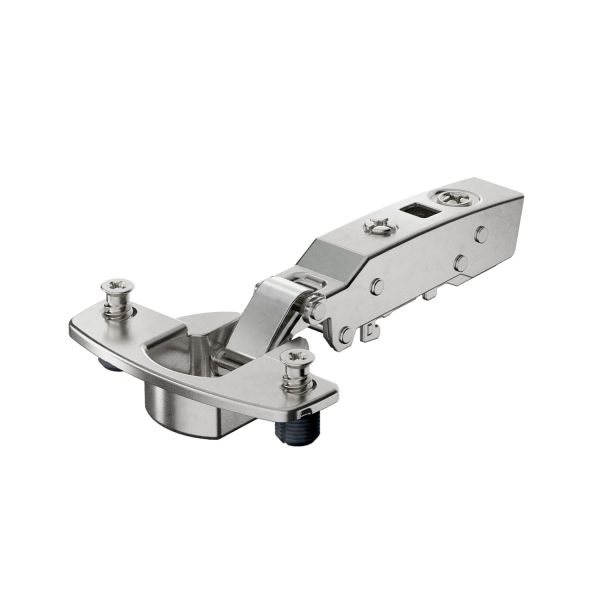

Sensys 95∞ thick door hinge, door thickness up to 32 mm, with integrated silent system, nickel plated, overlay, TH-drilling pattern 52 x 5.5 mm, with expanding sockets
KP#:
9091406
Description
Sensys thick door hinge, door thickness up to 32 mm.
With integrated Silent System, with self closing feature (Sensys 8631i).
Quality classification under EN 15570, Level 2.
Opening angle 95°.
For door thickness 1532 mm.
Door mounting option overlay (B 12.5 mm).
Specifications
- Konnect Part 9091406
- Brand not selected
- Artia Drawer Systems-Finish Nickel Plated
