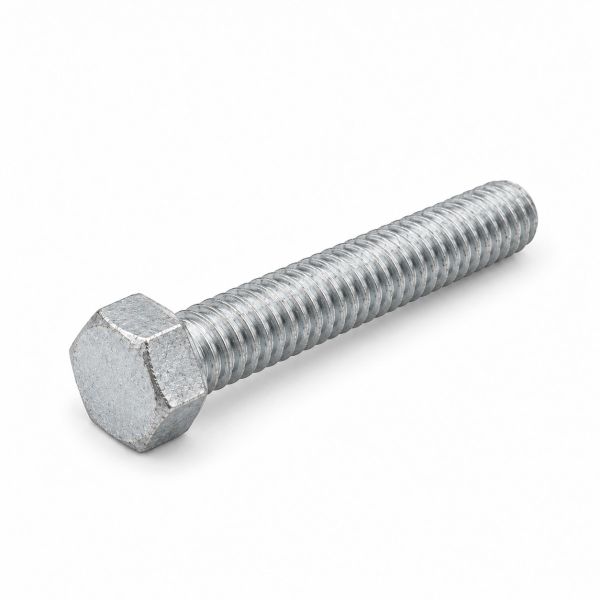

Hex Head Set Screw CL4.6 Mech Galv M10x40
KP#:
10X40GSS
Description
Hex head set screw, fully threaded to the head. ISO Property Class 4.6 with a mechanically galvanised finish.
Key features
- Fully threaded to the underside of the head
- Hex head for spanner or socket tightening
- Mechanically galvanised zinc coating, applied without heat, giving even cover on threads and small parts
Specifications
| Diameter | M10 |
|---|---|
| Length | 40mm |
| Thread | M10-1.50 |
| Grade | AS1393 / Class 4.6 |
| Material | ISO Property Class 4.6 |
| Finish | Mechanical Galvanised |
| Head type | Hex Head |
Specifications
- Konnect Part 10X40GSS
- Fastener Thread Type Metric
- Fastener Type Commercial
- Fastener Thread M10-1.50
- Fastener Paint Finish Not Painted
- Fastener Material ISO Property Class 4.6
- Fastener Category Hex Set Screw
- Fastener Diameter M10
- Fastener Finish Mechanical Galvanised
- Fastener Class/Grade AS1393 / Class 4.6
- Fastener Head Type Hex Head
- Fastener Length 40
- Fastener Drive Type Hex External
