ITM Air Compressor, Silenced Cabinet, 3 Phase, 5.5HP, 270L, FAD 465 L/min (TM355-55270)
by
ITM
KP#:
TM355-55270
Description
Three phase 5.5hp piston air compressor with a 270L receiver, housed in a soundproof cabinet for quiet running close to the work area. It delivers 465L/min free air from a 702L/min displacement, twin cast iron cylinder, oil lubricated pump running at a low 853rpm, with a maximum pressure of 10 bar (147psi). Motor protection includes a soft start valve and thermal overload with manual reset, along with a Condor pressure switch and certified safety valve.
Key features
- Silenced cabinet for low noise operation
- 5.5hp 415V three phase induction motor
- 270L air receiver
- 465 L/min (16.4 CFM) free air delivery
- Twin cast iron cylinder, oil lubricated pump
- Soft start valve and thermal overload
- Condor pressure switch
- Brass non-return valve, certified safety valve
Specifications
| Motor | 5.5hp |
|---|---|
| Power supply | 415V three phase |
| Tank | 270L |
| Free air delivery | 465 L/min (16.4 CFM) |
| Displacement | 702 L/min (24.8 CFM) |
| Max pressure | 10 bar (147psi) |
| Pump | twin cast iron cylinders, aluminium head, oil lubricated |
| Pump speed | 853rpm |
| Dimensions | 1,350 x 700 x 1,730mm (L x W x H) |
Silenced cabinet for low noise operation
5.5hp 415V three phase induction motor
270L air receiver
465 L/min (16.4 CFM) free air delivery
Twin cast iron cylinder, oil lubricated pump

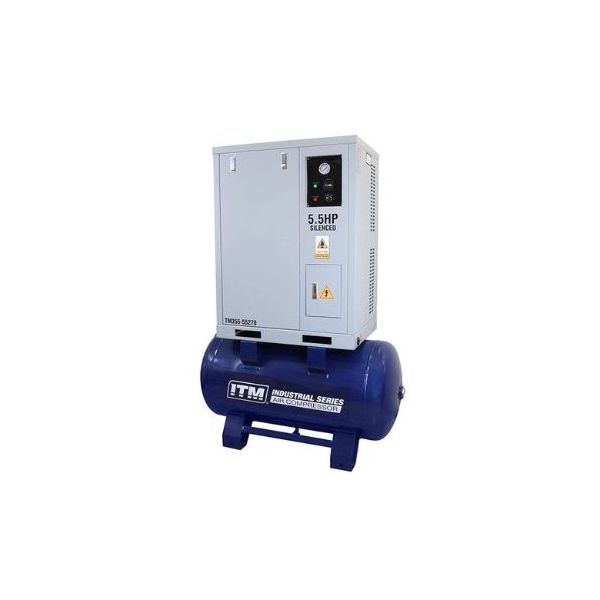

Image for Illustration purposes only
Specifications
- Konnect Part TM355-55270
- Brand ITM
