ITM Bandsaw, 180mm Cap, 4 Speed, 240V 1PH, Horizontal & Vertical Cut (UE712A)
by
ITM
KP#:
UE712A
Description

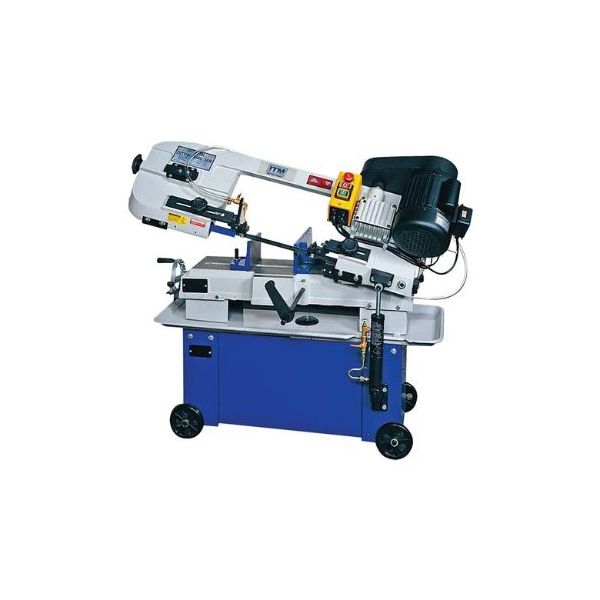

Taiwanese made metal cutting bandsaw with a 180mm capacity that can be used for both horizontal and vertical cutting. A 1hp 240V single phase motor drives four blade speeds from 22 to 65m/min, and the swivel vice allows angled cuts from 0 to 45 degrees. It has an adjustable hydraulic down feed with automatic shut off at the end of the cut, a recirculating coolant system and a wheeled base for moving around the workshop.
Key features
- 180mm round and square capacity at 90 degrees
- Horizontal and vertical cutting
- Swivel vice for 0 to 45 degree cuts
- Hydraulic down feed with auto shut off
- 4 blade speeds, 22 to 65 m/min
- Recirculating coolant system
- Emergency stop and NVR switch
- Wheeled base, supplied with blade
Specifications
| Motor | 1hp, 240V single phase |
|---|---|
| Blade speeds | 22 / 33 / 45 / 65 m/min |
| Blade size | 19 x 0.9 x 2,360mm |
| Capacity at 90 deg | round 180mm, square 180mm, rectangle 300 x 180mm |
| Capacity at 45 deg right | round 110mm, square 110mm, rectangle 120 x 115mm |
| Bed height | 572mm |
| Weight | 130kg |
| Country of origin | Taiwan |
| Warranty | 12 months |
180mm round and square capacity at 90 degrees
Horizontal and vertical cutting
Swivel vice for 0 to 45 degree cuts
Hydraulic down feed with auto shut off
4 blade speeds, 22 to 65 m/min
Image for Illustration purposes only
Specifications
- Konnect Part UE712A
- Brand ITM
