Mushroom Head Bolt with Nut CL4.6 Plain M16x50mm
KP#:
16X50HGBN
Description

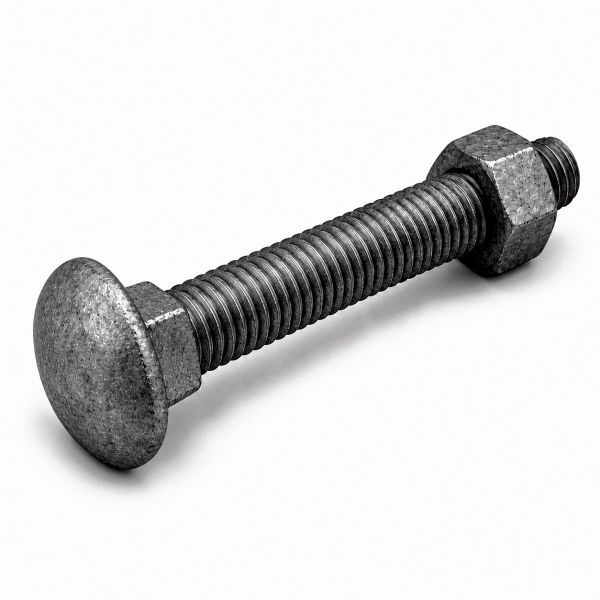

Cup head bolt supplied with a hex nut, with a square neck under the dome head to stop the bolt turning in timber. ISO Property Class 4.6 with a plain (self colour) finish.
Key features
- Square neck locks into timber as the nut is tightened
- Supplied with matching hex nut
- Plain self colour finish for dry, indoor use or where a coating is applied after assembly
Specifications
| Diameter | M16 |
|---|---|
| Length | 50mm |
| Thread | M16-2.00 |
| Grade | AS1393 / Class 4.6 |
| Material | ISO Property Class 4.6 |
| Finish | Plain |
| Head type | Mushroom Head |
Specifications
- Konnect Part 16X50HGBN
- Fastener Thread Type Metric
- Fastener Type Commercial
- Fastener Thread M16-2.00
- Fastener Paint Finish Not Painted
- Fastener Material ISO Property Class 4.6
- Fastener Category Cup Head Bolt & Nut
- Fastener Diameter M16
- Fastener Finish Plain
- Fastener Class/Grade AS1393 / Class 4.6
- Fastener Head Type Mushroom Head
- Fastener Length 50
- Fastener Drive Type No Drive Type
