1 1/2"-8UN X 590MM ASTM A193 B7 Stud Bolt c/w 2 A19
KP#:
1.12X590B72HMG50
$457.845
$416.2227
$457.845
Description

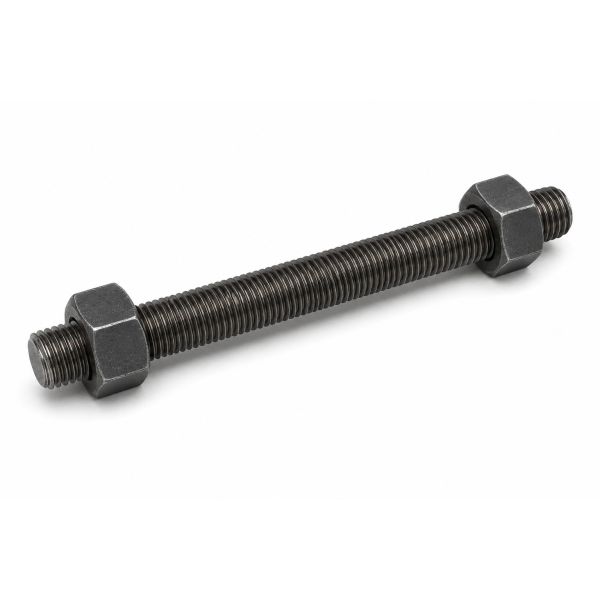

A 1-1/2" x 590mm UN8 Grade B7 studbolt kit.
Studbolts are threaded studs used with a nut on each end, typically to bolt flanged pipe joints. ASTM A193 Grade B7 is a chromium molybdenum alloy steel grade for high temperature and high pressure service, such as flanged joints in petrochemical, oil and gas plants.
Specifications
- Product type: StudBolt Kit
- Diameter: 1-1/2"
- Length: 590mm
- Thread: 1-1/2"-8 UN8 (8 threads per inch)
- Material: AISI-4140 / ASTM-A193 / Grade B7 / ASTM-A194 / Grade 2H
- Grade / standard: Grade B7 / ASTM-A193 / Grade 2H / ASTM-A194
- Finish: Plain
- Konnect part number: 1.12X590B72HMG50
Order online from Konnect Fastening Systems.
Specifications
- Konnect Part 1.12X590B72HMG50
- Fastener Thread Type UN8
- Fastener Type Petrochemical - Stud - Set
- Fastener Thread 1-1/2"-8 UN8
- Fastener Paint Finish Class 50 / B695
- Fastener Material AISI-4140 / ASTM-A193 / Grade B7 / ASTM-A194 / Grade 2H
- Fastener Category StudBolt Kit
- Fastener Diameter 1-1/2"
- Fastener Finish Plain
- Fastener Class/Grade Grade B7 / ASTM-A193 / Grade 2H / ASTM-A194
- Fastener Length 590
- Fastener Drive Type No Drive Type
- Brand not selected
