Flanged Serrated Hex Nut ZP Metric Fine M10 1.25P
KP#:
10-1.25M14AFWLNBU
$0.5602
$0.5093
$0.5602
Description

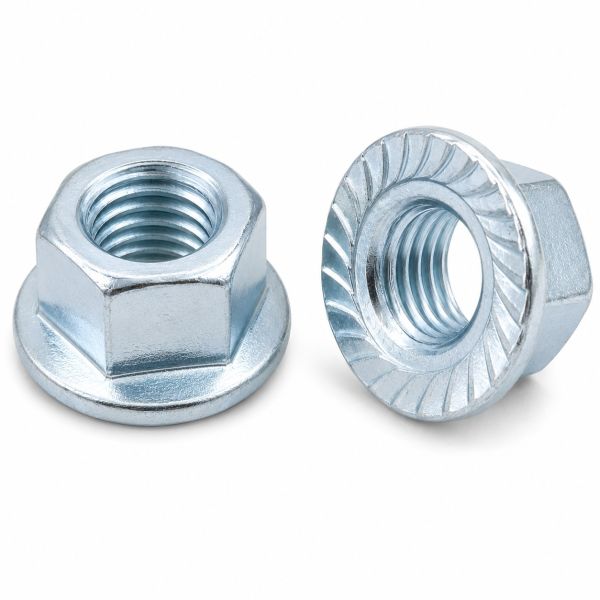

An M10 zinc plated serrated hex flange nut.
The serrated flange grips the mating surface to resist loosening, without needing a separate washer. Zinc plating gives light corrosion protection, best suited to indoor and dry environments.
Specifications
- Product type: Nut - Hex - Flanged Serrated
- Diameter: M10
- Thread: M10 x 1.25mm pitch
- Drive: Hex External
- Grade / standard: Class 8 - ISO4161 / DIN6923
- Finish: Zinc Plated
- Konnect part number: 10-1.25M14AFWLNBU
Order online from Konnect Fastening Systems.
Specifications
- Konnect Part 10-1.25M14AFWLNBU
- Fastener Thread Type Metric ISO Coarse
- Fastener Type Nut - Locking - Hex Flange - Anti Vibration
- Fastener Thread M10-1.25
- Fastener Paint Finish Yellow
- Fastener Material Steel - Property Class 8
- Fastener Category Nut - Hex - Flanged Serrated
- Fastener Diameter M10
- Fastener Finish Zinc Plated
- Fastener Class/Grade Class 8 - ISO4161 / DIN6923
- Fastener Drive Type Hex External
- Brand not selected
