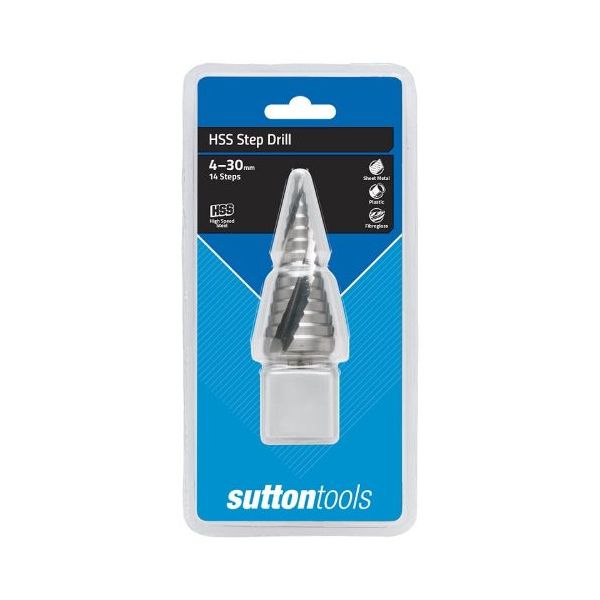

Sutton D504 HSS Step Drill Spiral Flute 4-30mm 14 Step
by
Sutton Tools
KP#:
D50443014
Description
A Sutton Tools D504 step drill that cuts holes from 4mm to 30mm in 14 fixed steps. It is made from M2 high speed steel with a spiral flute that reduces vibration and gives better control between steps. Each step deburrs the hole cut by the previous one, and the drill cuts sheet metal, aluminium, plastic and fibreglass without pre-drilling. The three-flat shank grips securely in a 3-jaw chuck.
Key features
- 4 to 30mm in 14 steps
- M2 high speed steel
- Spiral flute reduces vibration
- Each step deburrs the previous hole
- No pre-drilling needed in sheet metal
- Three-flat shank for 3-jaw chucks
Specifications
| Pieces | 1 |
|---|---|
| Diameter Range | 4-30mm |
| Steps | 14 |
| Overall Length | 100mm |
| Step Depth | 5mm |
| Material | M2 HSS |
| Coating | Not stated by stockists (see match note) |
| Flute | Spiral |
| Shank | Three-flat |
| Suitable For | Sheet metal, aluminium, plastic, fibreglass |
4 to 30mm in 14 steps
M2 high speed steel
Spiral flute reduces vibration
Each step deburrs the previous hole
No pre-drilling needed in sheet metal
Image for Illustration purposes only
Specifications
- Konnect Part D50443014
- Brand Sutton Tools
