Description

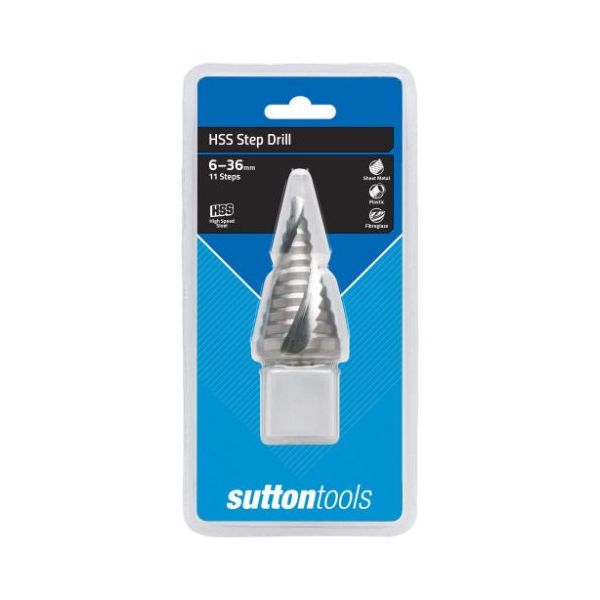

A Sutton Tools D504 step drill that cuts holes from 6mm to 36mm in 11 fixed steps. It is made from M2 high speed steel with a spiral flute for reduced vibration and better control through the steps. Each step deburrs the hole cut by the previous one, and the drill cuts sheet metal, aluminium, plastic and fibreglass without pre-drilling. The three-flat shank fits a 3-jaw chuck.
Key features
- 6 to 36mm in 11 steps
- M2 high speed steel
- Spiral flute reduces vibration
- Each step deburrs the previous hole
- No pre-drilling needed in sheet metal
- Three-flat shank for 3-jaw chucks
Specifications
| Pieces | 1 |
|---|
| Diameter Range | 6-36mm |
|---|
| Steps | 11 |
|---|
| Overall Length | 90mm |
|---|
| Step Depth | 5.5mm |
|---|
| Material | M2 HSS |
|---|
| Coating | Not stated by stockists (see match note) |
|---|
| Flute | Spiral |
|---|
| Shank | Three-flat |
|---|
| Suitable For | Sheet metal, aluminium, plastic, fibreglass |
|---|
6 to 36mm in 11 steps
M2 high speed steel
Spiral flute reduces vibration
Each step deburrs the previous hole
No pre-drilling needed in sheet metal
Image for Illustration purposes only
