Tuff Multi Grip 100mm
KP#:
MG100
Description
The Tuff Multi Grip is a 100mm galvanised steel timber connector for right-angle framing connections. It suits high-load applications such as fixing joists to the face of bearers and tying down trusses or rafters to top plates. It is made from 1mm Z275 Galvabond steel with pre-punched nail holes.
Key features
- 100mm multi-purpose timber connector
- 1mm G300 Z275 galvanised steel
- Suits high-load tie-down applications
- Fixes joists to the face of bearers
- Ties trusses or rafters to top plates
- Pre-punched 3.4mm nail holes
Specifications
| Length | 100mm |
|---|---|
| Leg Size | 36 x 36mm |
| Thickness | 1mm |
| Material | G300 Z275 galvanised steel (Galvabond) |
| Hole Size | 3.4mm |
| Carton Qty | 100 |
100mm multi-purpose timber connector
1mm G300 Z275 galvanised steel
Suits high-load tie-down applications
Fixes joists to the face of bearers
Ties trusses or rafters to top plates

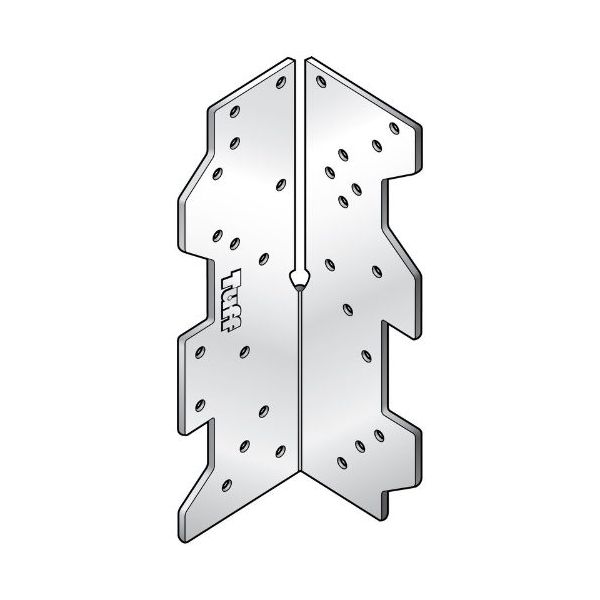

Image for Illustration purposes only
Specifications
- Konnect Part MG100
- Barcode 9314691802401
